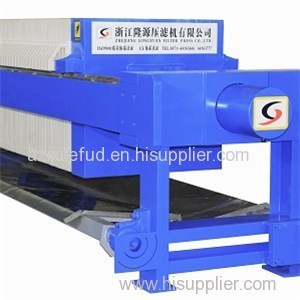

Characteristic: 1. The reinforced PP filter plate featured smooth surface,high strength,light weight,anti-corrosive, acid and alkaline resistant, non-toxic and odorless is molding pressed with patent technology. 2.The frame is welded steel structure with high strength, stable structure and long performance life 3.Automatic shifting and discharging device,automatic drip tray, vibration,automatic cloth washing system,PLC control  or relay control are optional according to actual situation. It is automatic operated with simple and secure  operation panel. In order to make sure the safety of operator. The machine is equipped with several kinds safety device 4.The slide way is made of SUS  which is anti-wearing and anti-corrosive 5.Perfect m separating solid from liquids with maximum filtering pressure3. filter area(m³) 10 15 20 25 30 40 50 60* 70* 80* Plate and frame of quantity(piece) 9 13 19 23 29 39 49 59 69 79 Filter chamber of Volume(m³) 0.157 0.235 0.313 0.391 0.47 0.626 0.798 0.955 1.11 1.268 Filterplate/diaphragm plate (piece) 4/5 6/7 9/10 11/12 14/15 19/20 24/25 29/30 34/35 39/40 dimensions of suction and discharge flanges(mm) DN65 Undercurrent liquid outlet flange size (mm) DN40 outside dimensions X10/800 length 2376 2616 2976 3216 3476 4176 4776 5376 5976 6567 width 1050 1600 heigth 1240 X10Z/800 length 2426 2666 3026 3266 3626 4226 4826 5426 6026 6626 width 1050 heigth 1240 X10G/800 length 2401 2651 3026 3276 3651 4276 4901 5526 6151 6776 width 1250 1600 heigth 1240 X10ZG/800 length 2451 2701 3076 3326 3701 4326 4951 5576 6201 6826 width 1250 1600 heigth 1240 X20/800 length 2787 3047 3437 3697 4087 4737 5387 6037 6687 7337 width 1250 1620 heigth 1240 X20Z/800 length 2845 3105 3495 3755 4145 4795 5445 6095 6745 7395 width 1270 1620 heigth 1240 X20ZG/800 length 2845 3105 3495 3755 4145 4795 5445 6095 6745 7395 width 1270 1620 heigth 1240
